Automatic Capping Machine for Bottle,Glass Jar with Ropp Cap Screw Capper Machine

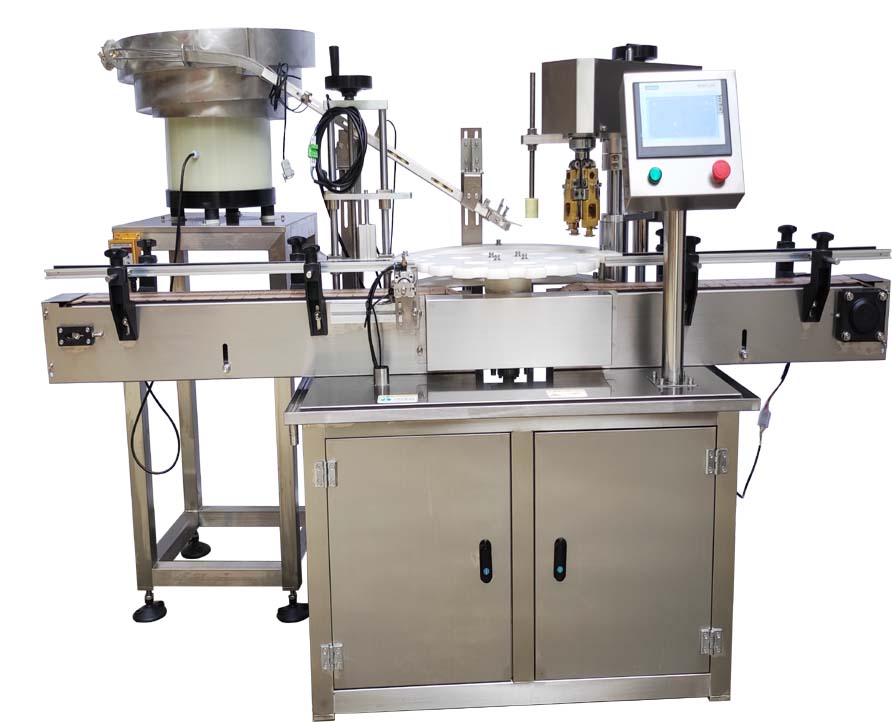

Machine are composed of vibration plate, cap track, turntable, and capping head.

The vibration plate is to arrange the caps into a uniform posture and then output them to the capping track to the capping station.

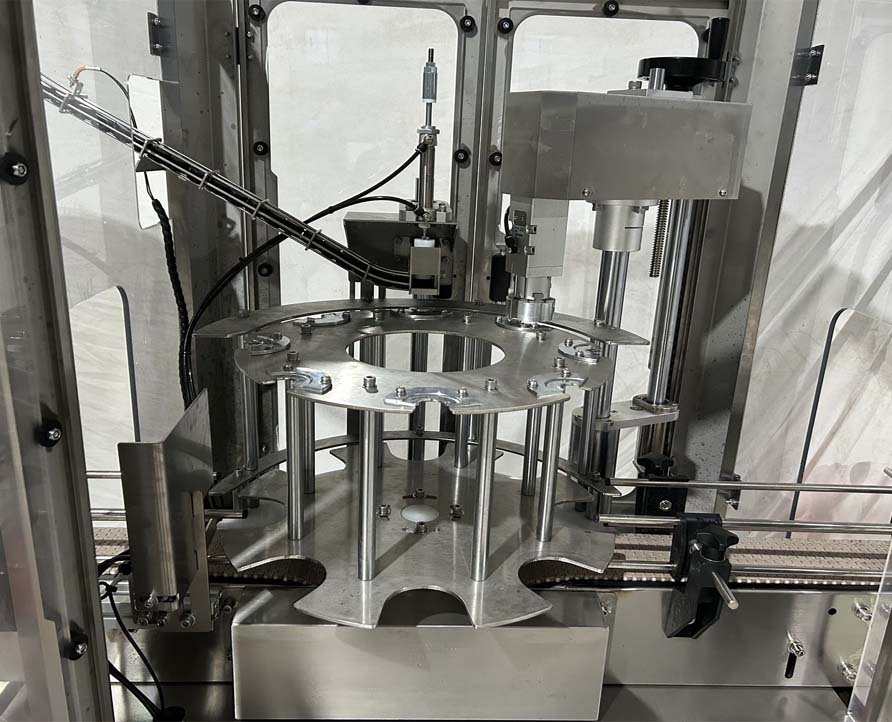

The cans are positioned and intermittently conveyed by the turntable, and a three-hook anti-rotation knife is installed on the turntable. The anti-rotation knife is made of hard mold steel.

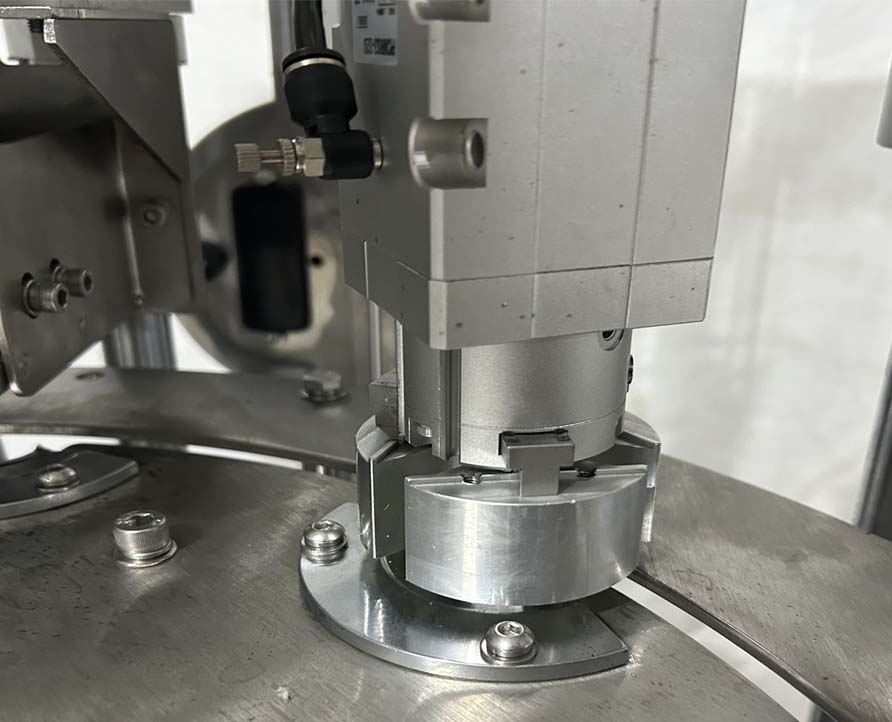

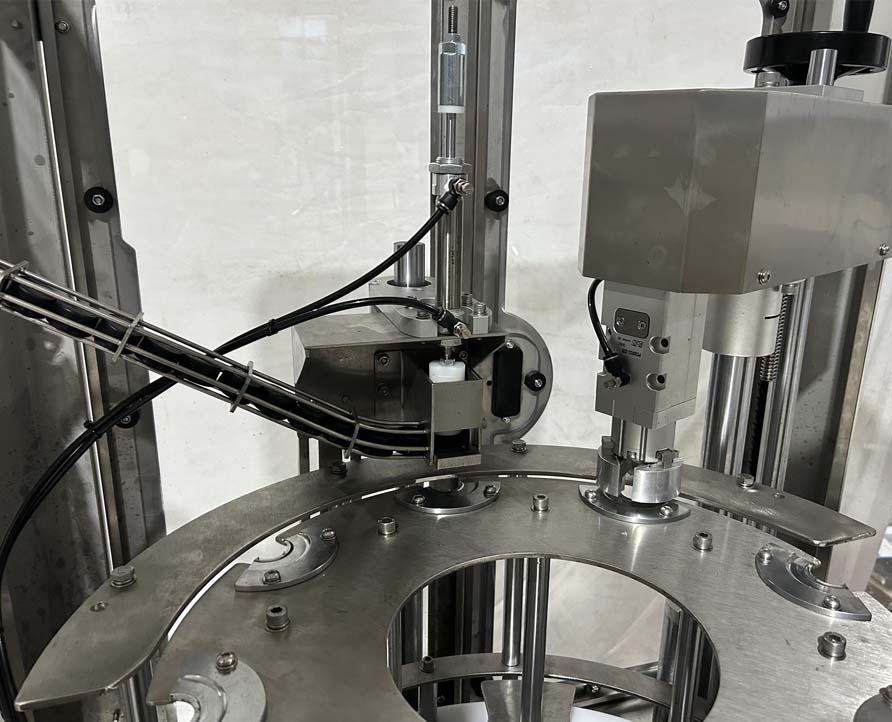

When the cap is screwed, the cap is clamped by the capping head and rotated clockwise to generate downward pressure. The three hooks of the anti-rotation knife clamp the bottleneck to reduce or prevent the bottle from rotating to complete the capping action.

Machine parameter

1. Capping head: 1 head (including vibration plate automatic capping)

2. Capping speed: 1200-2000 bottles/hour

3. Capping bottle diameter: 20-50mm (customizable)

4. Bottle diameter: 20-120mm (customizable)

5. Bottle height: 30-250mm (customizable)

6. Power: 1.5KW

7. Dimensions: 1800mm Lx 900mm Wx 1600mm H

Machin PLC: Siemens brand

Touch screen : Siemens brand

GZ fharvest automatic capping machine Feature

1. The turntable uses a stopper to fix the bottle body, and the machine head follows the cam mechanical transmission to rise and fall. The principle is simple, the adjustment is convenient, and the force is balanced;

2. The servo claw capping is adopted. The torque and speed can be set on the screen during the capping process. It is reliable and safe, especially suitable for screw cap packaging;

3. The stopper is made of high-speed steel and is durable; the contact parts of the capping head are made of polyurethane, which is wear-resistant. It does not damage the cap.

4. The touch screen interface is adopted, which is extremely simple and clear to use;

5. Automatically detect the bottle cap, and alarm if the cap is not enough. The circuit control design is reasonable and safe;

As a leading manufacturer of capping machines, we can customize the capping machines according to different bottle types and capping styles of customers. We have a professional design and R&D team and can adjust the solutions according to customer needs. We have rich experience in capping machines, screw cap machines, and capper machines. Please feel free to consult us info@gzfharvest.com .
